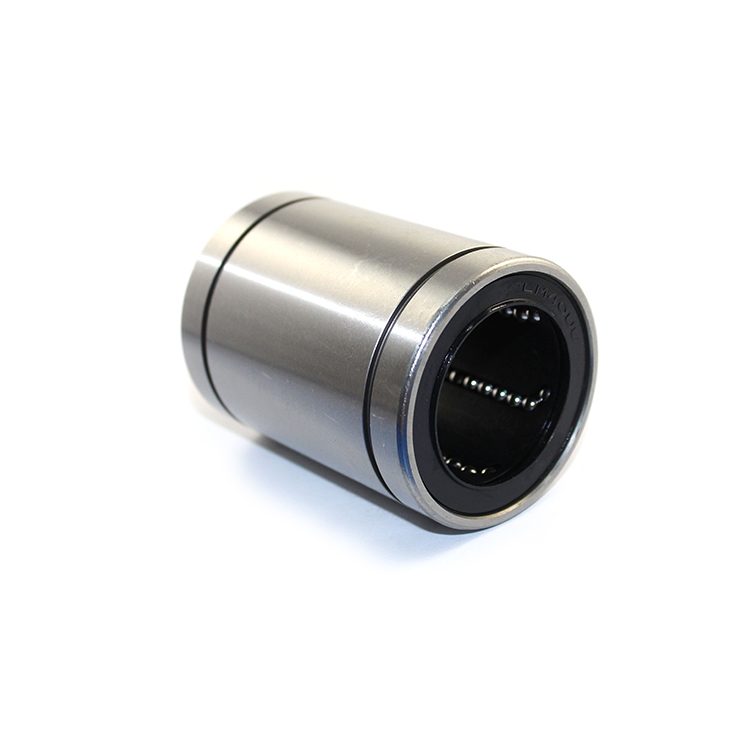

Linear motion bearing LM series

LM 3UU...LM 35UU LM5UUAJ...LM150UUAJ LM12UUOP...LM150UUOP Linear bearing is a linear motion system, which is used for linear stroke and cylindrical shaft. Because the bearing ball contacts with the bearing jacket point, the steel ball rolls with the minimum friction resistance, …

: Hotline
+86 13392733900

Product Details

完整型	规格型号		间隙可调型	开放型	主要			主要		尺寸(mm)											径向间隙容许值μm	基本额定负荷
	规格型号				内接圆径dr			外径D		尺寸(mm)												基本额定负荷
	钢珠条列	重量(g)			内接圆直径	容许差	容许差	外径	容许差	长度L	长度L	长度B	长度B	W	D1	h	h1	θ	偏心(最大)μm	偏心(最大)μm		C	Co
	钢珠条列	重量(g)			内接圆直径	精	高	外径	精·高	长度L	容许差	长度B	容许差	W	D1	h	h1	θ	精	高		N	N
LM3UU	4	1.4	-	-	3	0 -0.005	0 -0.008	7	0 -0.009	10	0 -0.12	-	-	-	-	-	-	-	4	8	-2	88.2	108
LM4UU	4	1.9	-	-	4	0 -0.005	0 -0.008	8	0 -0.009	12	0 -0.12	-	-	-	-	-	-	-	4	8	-3	88.2	127
LM5UU	4	4	LM5UUAJ	-	5	0 -0.005	0 -0.008	10	0 -0.009	15	0 -0.12	10.2	0 -0.2	1.1	9.6	-	-	-	4	8	-3	167	206
LM6UU	4	8	LM6UUAJ	-	6	0 -0.006	0 -0.009	12	0 -0.011	19	0 -0.2	13.5	0 -0.2	1.1	11.5	1	-	-	8	12	-5	206	265
LM8SU	4	11	LM8SUAJ	-	8	0 -0.006	0 -0.009	15	0 -0.011	17	0 -0.2	11.5	0 -0.2	1.1	14.3	1	-	-	8	12	-5	176	225
LM8UU	4	16	LM8UUAJ	-	8	0 -0.006	0 -0.009	15	0 -0.011	24	0 -0.2	17.5	0 -0.2	1.1	14.3	1	-	-	8	12	-5	265	402
LM10UU	4	30	LM10UUAJ	-	10	0 -0.006	0 -0.009	19	0 -0.013	29	0 -0.2	22	0 -0.2	1.3	18	1	-	-	8	12	-5	373	549
LM12UU	5	31.5	LM12UUAJ	LM12UUOP	12	0 -0.006	0 -0.009	21	0 -0.013	30	0 -0.2	23	0 -0.2	1.3	20	1.5	8	80°	8	12	-5	412	598
LM13UU	5	43	LM13UUAJ	LM13UUOP	13	0 -0.006	0 -0.009	23	0 -0.013	32	0 -0.2	23	0 -0.2	1.3	22	1.5	9	80°	8	12	-7	510	775
LM16UU	5	69	LM16UUAJ	LM16UUOP	16	0 -0.006	0 -0.009	28	0 -0.013	37	0 -0.2	26.5	0 -0.2	1.6	27	1.5	11	80°	8	12	-7	775	1180
LM20UU	5	87	LM20UUAJ	LM20UUOP	20	0 -0.007	0 -0.010	32	0 -0.016	42	0 -0.2	30.5	0 -0.2	1.6	30.5	1.5	11	60°	10	15	-9	863	1370
LM25UU	6	220	LM25UUAJ	LM25UUOP	25	0 -0.007	0 -0.010	40	0 -0.016	59	0 -0.3	41	0 -0.3	1.85	38	2	12	50°	10	15	-9	980	1570
LM30UU	6	250	LM30UUAJ	LM30UUOP	30	0 -0.007	0 -0.010	45	0 -0.016	64	0 -0.3	44.5	0 -0.3	1.85	43	2.5	15	50°	10	15	-9	1570	2750
LM35UU	6	390	LM35UUAJ	LM35UUOP	35	0 -0.008	0 -0.012	52	0 -0.019	70	0 -0.3	49.5	0 -0.3	2.1	49	2.5	17	50°	12	20	-13	1670	3140
LM40UU	6	585	LM40UUAJ	LM40UUOP	40	0 -0.008	0 -0.012	60	0 -0.019	80	0 -0.3	60.5	0 -0.3	2.1	57	3	20	50°	12	20	-13	2160	4020
LM50UU	6	1580	LM50UUAJ	LM50UUOP	50	0 -0.008	0 -0.012	80	0 -0.019	100	0 -0.3	74	0 -0.3	2.6	76.5	3	25	50°	12	20	-13	3820	7940
LM60UU	6	2000	LM60UUAJ	LM6OUUOP	60	0 -0.009	0 -0.015	90	0 -0.022	110	0 -0.3	85	0 -0.3	3.15	86.5	3	30	50°	17	25	-16	4710	10000
LM80UU	6	4520	LM80UUAJ	LM8OUUOP	80	0 -0.009	0 -0.015	120	0 -0.022	140	0 -0.3	105.5	0 -0.3	4.15	116	3	40	50°	17	25	-16	7350	16000
LM100UU	6	8600	LM100UUAJ	LM100UUOP	100	0 -0.010	0 -0.020	150	0 -0.025	175	0 -0.4	125.5	0 -0.4	4.15	145	3	50	50°	20	30	-20	14100	38400
LM120UU	8	15000	LM120UUAJ	LM120UUOP	120	0 -0.010	0 -0.020	180	0 -0.025	200	0 -0.4	158.5	0 -0.4	4.15	175	4	85	80°	20	30	-25	16400	40000
LM150UU	8	20250	LM150UUAJ	LM150UUOP	150	0 -0.013	0 -0.025	210	0 -0.029	240	0 -0.4	170.6	0 -0.4	5.15	204	4	105	80°	25	40	-30	21100	54300
