Linear bearing LMF series

Linear bearing is a linear motion system, which is used for linear stroke and cylindrical shaft. Because the bearing ball contacts with the bearing jacket point, the steel ball rolls with the minimum friction resistance, the linear bearing has small friction, is relatively stable…

: Hotline
+86 13392733900

Product Details

直线轴承是一种直线运动系统，用于直线行程与圆柱轴配合使用。由于承载球与轴承外套点接触，钢球以最小的摩擦阻力滚动，因此直线轴承具有摩擦小，且比较稳定，不随轴承速度而变化，能获得灵敏度高、精度高的平稳直线运动。

型号			球列数	重量(g)	许用直	基本负载率		尺寸(mm)
型号					径公差	基本负载率		尺寸(mm)

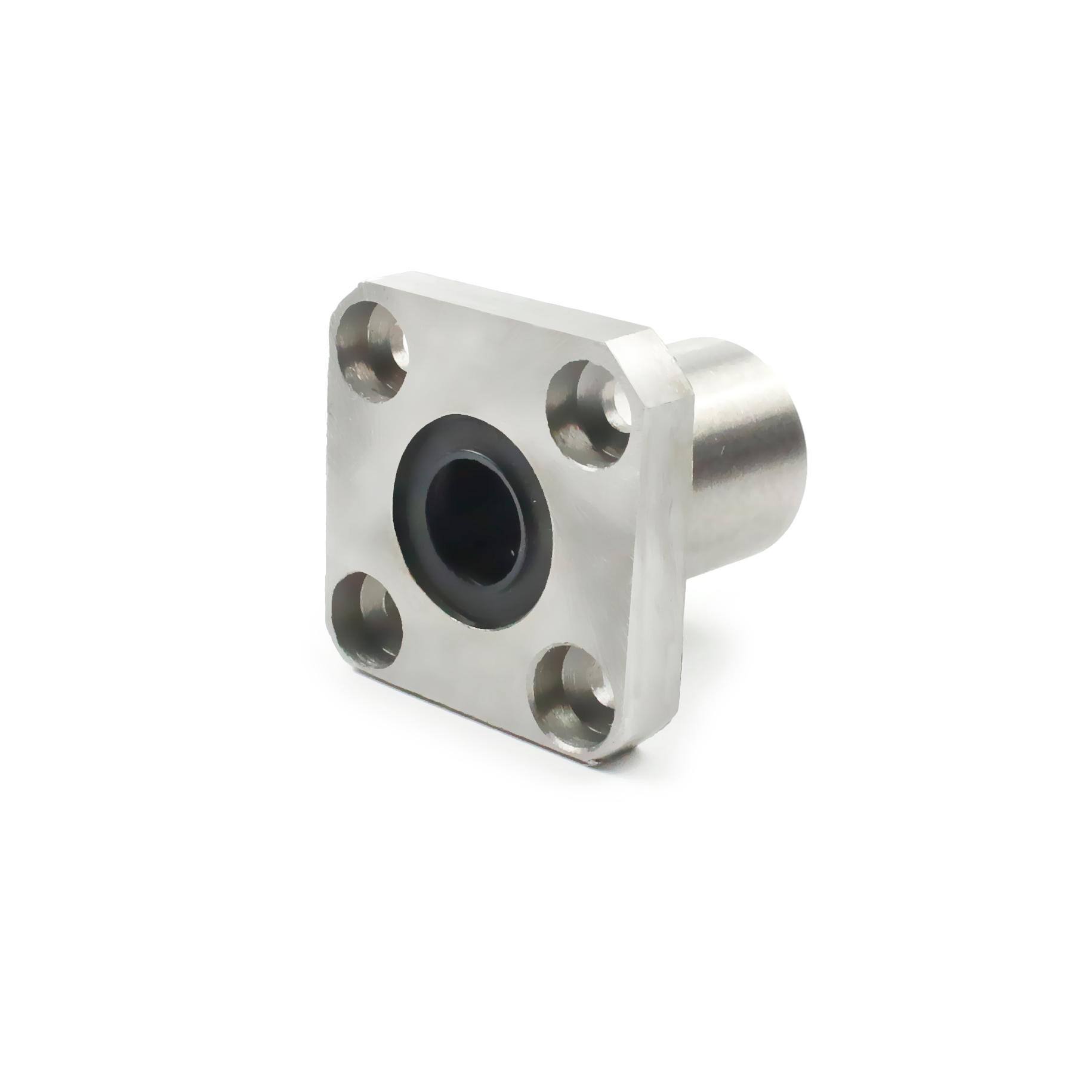

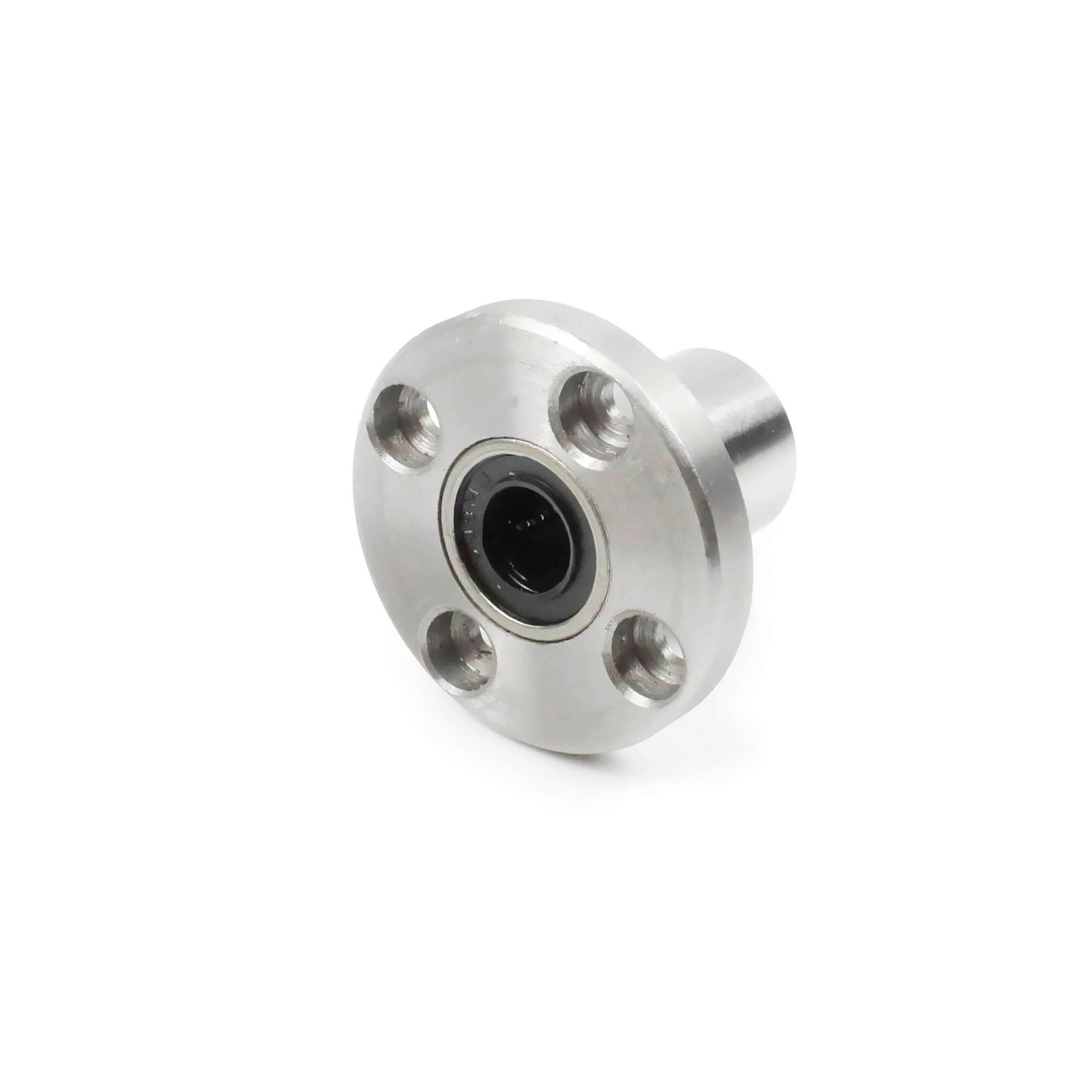

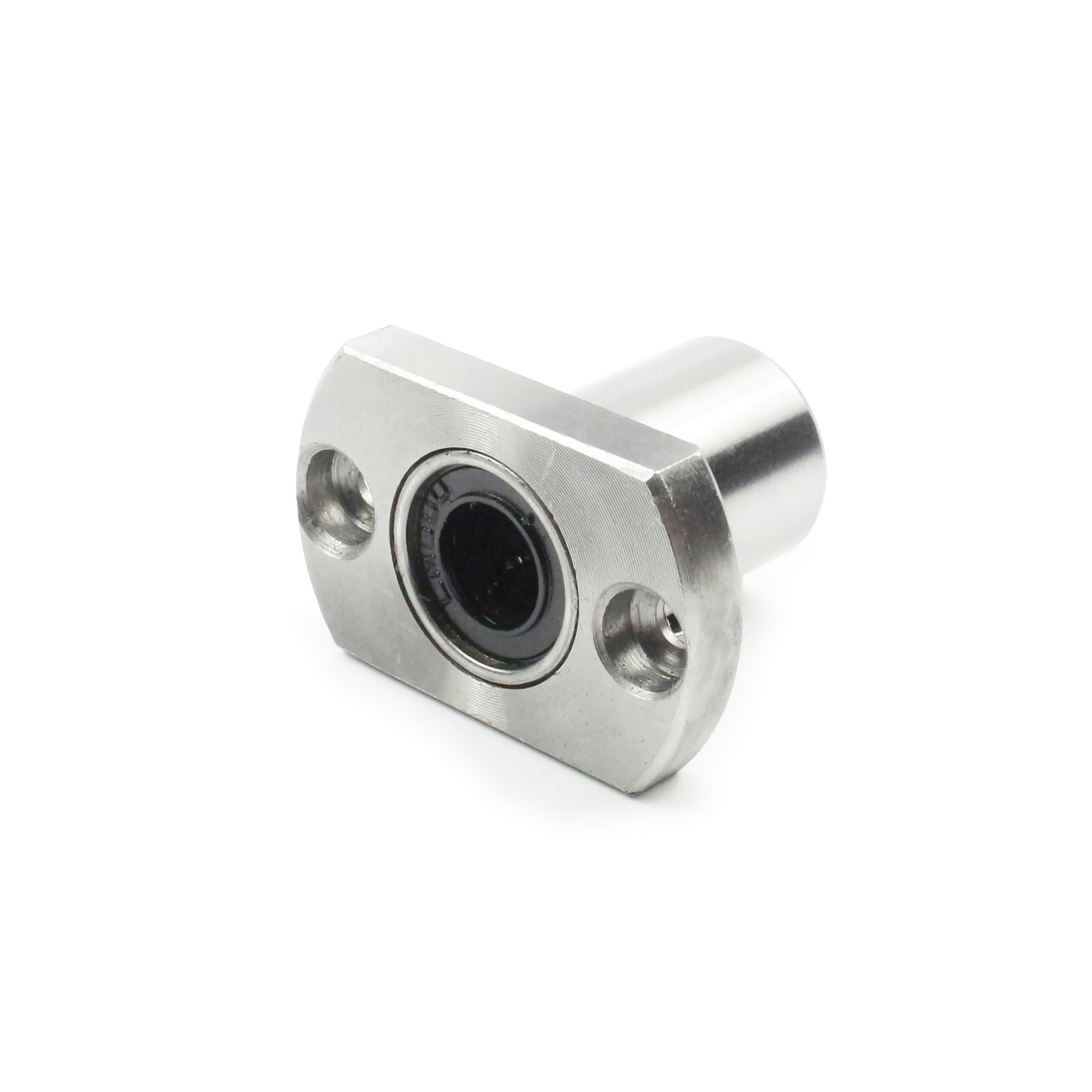

圆法兰型	方法兰型	椭圆法兰型			(μm)	动态	静态	内径	内径	外径D	外径D	长度L	长度L	D1	D1	H	PCD	K	W	A	F	直角度	d1×d2×h
						C(N)	Co(N)	dr(mm)	公差dr(μm)	(mm)	公差(μm)	(mm)	公差(mm)	(mm)	公差(mm)							※
																						(μm)
LMF6UU	LMK6UU	LMH6UU	4	26.5	-5	200	260	6	0 -9	12	0 -11	19	0 -0.2	28	0 -0.2	5	20	22	18	20	-	12	3.4×6.5×3.3
LMF8SUU	LMK8SUU	-	4	34	-5	170	220	8	0 -9	15	0 -11	17	0 -0.2	32	0 -0.2	5	24	25	-	-	-	12	3.4×6.5×3.3
LMF8UU	LMK8UU	LMH8UU	4	40	-5	260	400	8	0 -9	15	0 -11	24	0 -0.2	32	0 -0.2	5	24	25	21	24	-	12	3.4×6.5×3.3
LMF10UU	LMK10UU	LMH10UU	4	78	-5	370	540	10	0 -9	19	0 -13	29	0 -0.2	40	0 -0.2	6	29	30	25	29	-	12	4.5×8×4.4
LMF12UU	LMK12UU	LMH12UU	4	76	-5	410	590	12	0 -9	21	0 -13	30	0 -0.2	42	0 -0.2	6	32	32	27	32	-	12	4.5×8×4.4
LMF13UU	LMK13UU	LMH13UU	4	94	-7	500	770	13	0 -9	23	0 -13	32	0 -0.2	43	0 -0.2	6	33	34	29	33	-	12	4.5×8×4.4
LMF16UU	LMK16UU	LMH16UU	5	134	-7	770	1170	16	0 -9	28	0 -13	37	0 -0.2	48	0 -0.2	6	38	37	34	31	22	12	4.5×8×4.4
LMF20UU	LMK20UU	LMH20UU	5	180	-9	860	1370	20	0 -10	32	0 -16	42	0 -0.2	54	0 -0.2	8	43	42	38	36	24	15	5.5×9.5×5.4
LMF25UU	LMK25UU	LMH25UU	6	340	-9	980	1560	25	0 -10	40	0 -16	59	0 -0.3	62	0 -0.2	8	51	50	46	40	32	15	5.5×9.5×5.4
LMF30UU	LMK30UU	LMH30UU	6	460	-9	1560	2740	30	0 -10	45	0 -16	64	0 -0.3	74	0 -0.2	10	60	58	51	49	35	15	6.6×11×6.5
LMF35UU	LMK35UU	-	6	795	-13	1660	3130	35	0 -12	52	0 -19	70	0 -0.3	82	0 -0.2	10	67	64	-	-	-	20	6.6×11×6.5
LMF40UU	LMK40UU	-	6	1054	-13	2150	4010	40	0 -12	60	0 -19	80	0 -0.3	96	0 -0.3	13	78	75	-	-	-	20	9×14×8.6
LMF50UU	LMK50UU	-	6	2200	-13	3820	7930	50	0 -12	80	0 -19	100	0 -0.3	116	0 -0.3	13	98	92	-	-	-	20	9×14×8.6
LMF60UU	LMK60UU	-	6	2960	-16	4700	9990	60	0 -15	90	0 -22	110	0 -0.3	134	0 -0.3	18	112	106	-	-	-	25	11×17.5×10.8
LMF80UU	LMK80UU	-	6	5800	-20	7350	16000	80	0 -15	120	0 -25	140	0 -300	164	0 -0.3	18	142	136	-	-	-	30	11×17×11.1
LMF100UU	LMK100UU	-	6	10600	-30	14100	34800	100	0 -20	150	0 -29	175	0 -300	200	0 -0.5	20	175	170	-	-	-	40	14×20×13.1
